2″ NPS Female Easy-Seal × 2″ Short Male Camlock Type A - Check-It, Foil & 21B Cap - CPP®

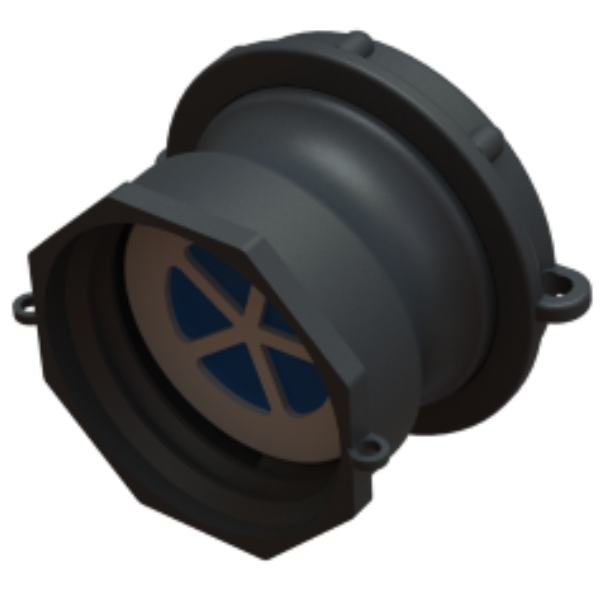

Connect an IBC or other container with a matching 2″ NPS male outlet to a matching 2″ female Camlock coupler. This CPP® assembly combines a 2″ NPS female Easy-Seal connection with a 2″ Short Male Camlock Type A (Part A) connection for dispensing water and other compatible liquids.

Short adaptor with eye and 21B cap assembly. Supplied bulk boxed without an individual bag.

What does Easy-Seal mean?

The NPS female connection comes complete with a sealing gasket. As the adaptor is tightened, the gasket compresses against the mating outlet’s sealing face to form the seal. The straight thread holds the connection together; the gasket provides the seal.

No thread-sealing tape or paste is needed on this NPS Easy-Seal connection when fitted to a matching outlet with a suitable sealing face. Conventional NPT threaded joints use tapered threads and normally require suitable sealing tape or compound.

Connections and materials

• Container connection: 2″ NPS female Easy-Seal, supplied with sealing gasket.
• Outlet connection: 2″ Short Male Camlock Type A (Part A).
• Supplied: Check-It component, foil, 21B cap and NPS sealing gasket.
• Product code: CIFMA20NOB101.

Thread and connection compatibility

NPS means National Pipe Straight. Check that your container has the matching 2″ NPS male thread and a suitable sealing face for the supplied gasket. Select by the actual thread and connection, as IBC outlets vary between manufacturers, models and replacement valves.

Camlock Type A (Part A) provides a 2″ male cam-and-groove connection. Check the mating size using the CPP® Camlock size chart.

Working pressure and testing

Maximum working pressure for IBC applications: 1 bar (approximately 15 psi) at 20°C.

Pressure testing: Tested to 60 psi (approximately 4.1 bar).

These pressures apply to the adaptor only. Follow the IBC tank and valve manufacturer’s operating limits; the adaptor rating does not authorise pressurising the IBC.

The pressure figures above apply to the adaptor component. They do not establish a separate pressure rating for the Check-It component or cap; follow the operating limits of the complete assembly.

Installation Notes

1. Close the container valve and ensure the outlet is depressurised before fitting or removing the adaptor.
2. Check that the outlet thread, sealing face and supplied gasket are clean and undamaged. Make sure the gasket is correctly seated.
3. Screw the adaptor onto the matching 2″ NPS male outlet by hand until the gasket contacts the sealing face.
4. From gasket contact, tighten a further 80° minimum to 160° maximum. Use a suitable strap wrench where necessary. Do not exceed 160°.
5. Remove the cap and foil before use. Check the Check-It component is correctly fitted and follow its operating instructions.
6. Fit the matching female Camlock coupler, check its gasket is correctly seated, and close both cam arms securely.
7. Support connected hoses and pipework to reduce strain on the adaptor and container valve. Check for leakage under the intended operating conditions before use.

Avoid overtightening, which can damage the threads, distort the gasket or cause leakage. Release pressure before disconnecting.

Material and application guidance

Check the CPP® chemical resistance guide and Material Application Statement for suitability with your liquid and operating conditions.

Need help choosing the right fitting?

If you’re unsure about your IBC thread or connection, please contact us and we’ll help you select the correct adaptor. A clear photo of the outlet, together with any measurements, will help us identify what you need.
