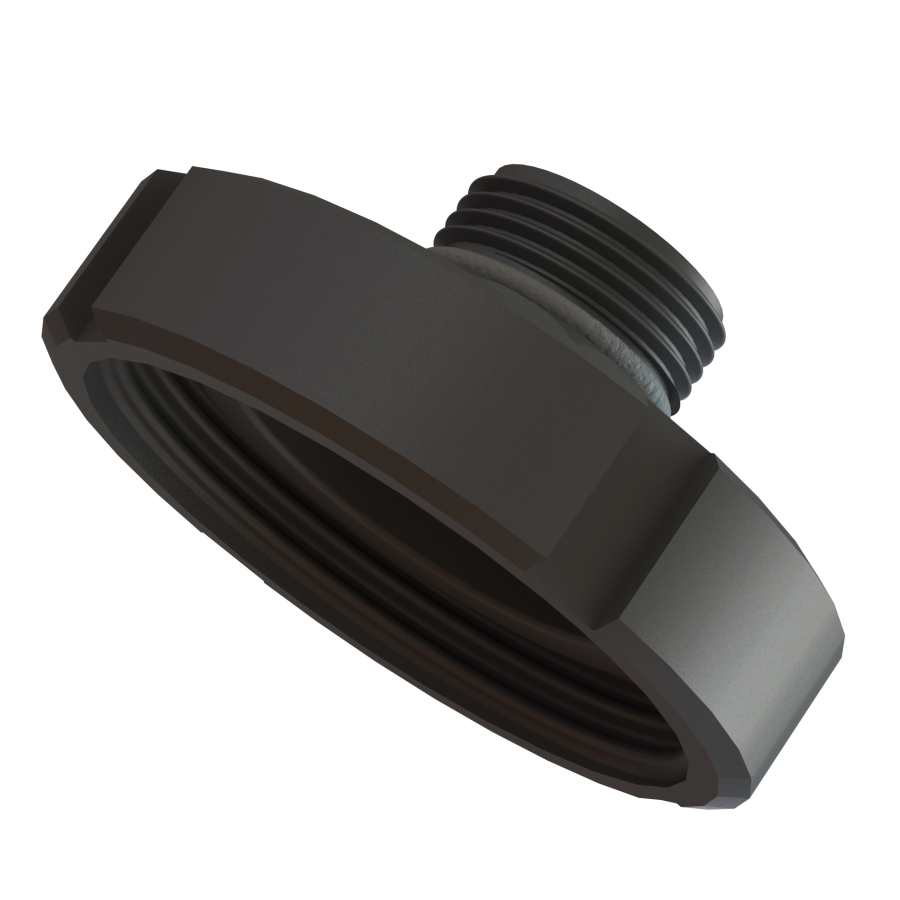

1″ BSPP Short Male / O-Ring × RD78 Female (DIN 11851, DN50) - GF Polypropylene - CPP®

1″ BSPP Short Male / O-Ring × RD78 Female (DIN 11851, DN50) - GF Polypropylene - CPP®

HMFPB1078RD027

£13.37 GBP ex VAT
£16.05 GBP
£0.00 GBP £16.05 GBP
inc VAT
Sale Awaiting stock
Taxes included. Shipping calculated at checkout.

In stock

CPP® specialist adaptor combining a 1″ BSPP short male connection with O-ring sealing and an RD78 female connection to DIN 11851 DN50.

The RD78 side uses the hygienic Rd 78 × 1/6″ thread commonly found on food-grade tanks and bag-in-box / liner IBC discharge systems.

  • RD78 female: DIN 11851 DN50, Rd 78 × 1/6″
  • Connection 2: 1″ BSPP short male, parallel G thread to ISO 228-1
  • O-ring material: PP Olefin Elastomer
  • Body material: glass-filled polypropylene
  • Part number: HMFPB1078RD027
