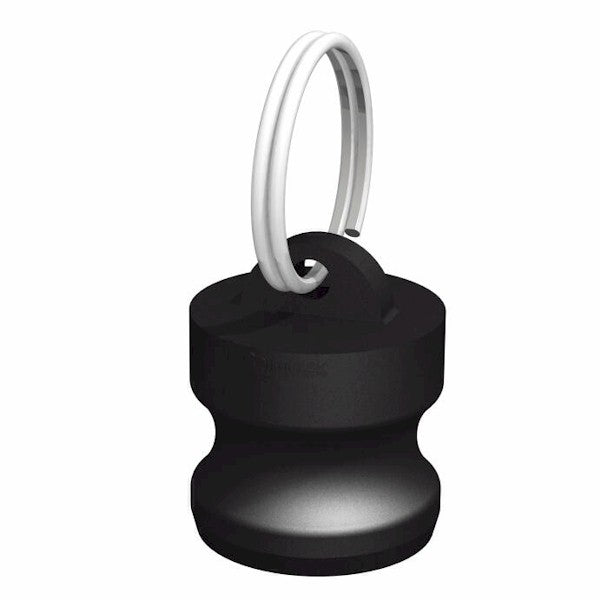

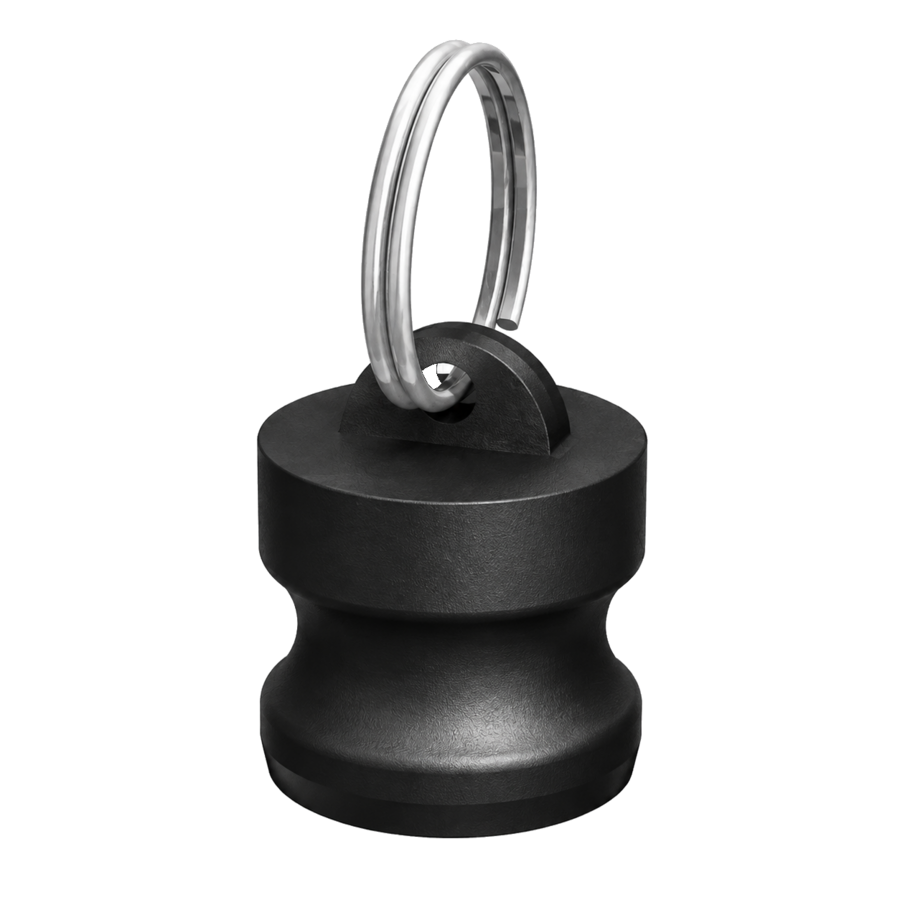

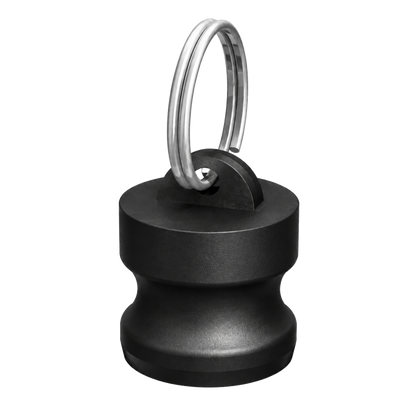

This CPP® Type DP (Part DP) dust plug fits a matching 1″ female Camlock coupler. It covers the disconnected connection to help keep out dust and debris during storage or handling.
Manufactured from glass-filled polypropylene, the plug has a male Camlock profile that fits inside a matching female coupler. The cam arms and sealing gasket are carried by the mating female coupler.
Specifications
Camlock type: Type DP (Part DP)
Camlock connection: 1″ male.
Function: Dust plug.
Thread: None.
Body material: Glass-filled polypropylene.
SKU: CMP10P027.
Camlock compatibility: Fits matching 1″ female Camlock heads manufactured to EN 14420-7 or US specification A-A-59326.
Choosing the correct size: Select by the 1″ Camlock head size and check the mating dimensions in the size chart.
Use and handling
Use for dust protection on a depressurised connection. A dust cap or dust plug should not be used as a pressure-retaining closure. Release system pressure before removing it and check that the mating connection is clean and undamaged.
Part-number orderingUse the CPP® SKU for fast repeat purchasing.
UK manufacturerSpecialist polymer fluid-transfer fittings.
Technical supportHelp with threads, materials and compatibility.
Global supplyB2B supply for industrial customers and distributors.
TECHNICAL RESOURCES
Check the connection before you order
Use the CPP technical guides for dimensions, material guidance and connection identification. If you are unsure which fitting you need, send us the application details and we can help identify it.
