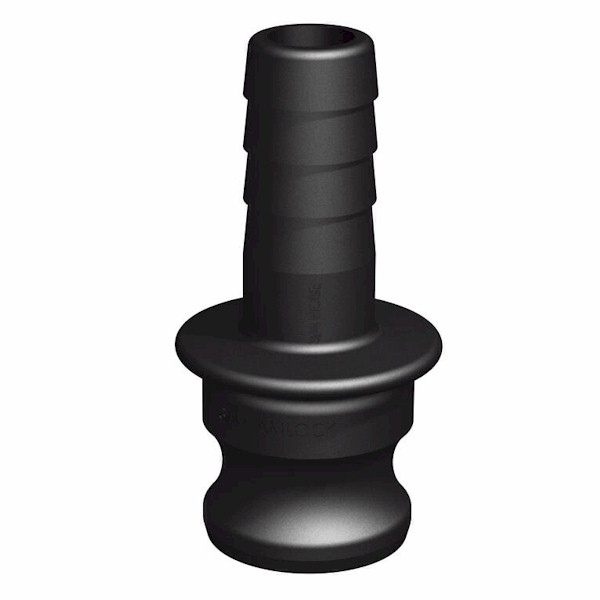

This CPP® Type E (Part E) adaptor connects a 1″ Male Camlock to a ¾″ Hose Tail.
Connects a matching 1″ female Camlock coupler to a hose of the specified bore. Useful for adapting a larger Camlock connection to a smaller transfer hose.
Connections and materials
Camlock connection: 1″ Male Camlock.
Other connection: ¾″ Hose Tail.
Body: black glass-filled polypropylene (GFPP).
Product code: CME1075T027.
Connection specification and fit
The hose-tail size identifies the nominal hose bore. Match the hose internal diameter and secure it with a suitable clamp for the hose, liquid and operating pressure.
Camlock compatibility: Fits matching 1″ female Camlock heads manufactured to EN 14420-7 or US specification A-A-59326. Check the mating dimensions using the CPP® size chart.
This male adaptor engages with the cam arms and gasket in the mating female coupler; those components are carried by the female coupler.
Working pressure — water service
Temperature
Working pressure
−10°C
5 bar / approx. 73 psi
20°C
6.5 bar / approx. 94 psi
65°C
3 bar / approx. 44 psi
These guide ratings are based on water service. The complete assembly is limited by its lowest-rated component. Verify suitability under the intended operating conditions, including the liquid and temperature.
Installation and use
Check both connection sizes before ordering. Confirm the compatibility of the body, seals and connected components with the liquid and temperature. Support hoses and pipework to reduce strain on the fitting, and release pressure before disconnecting.
