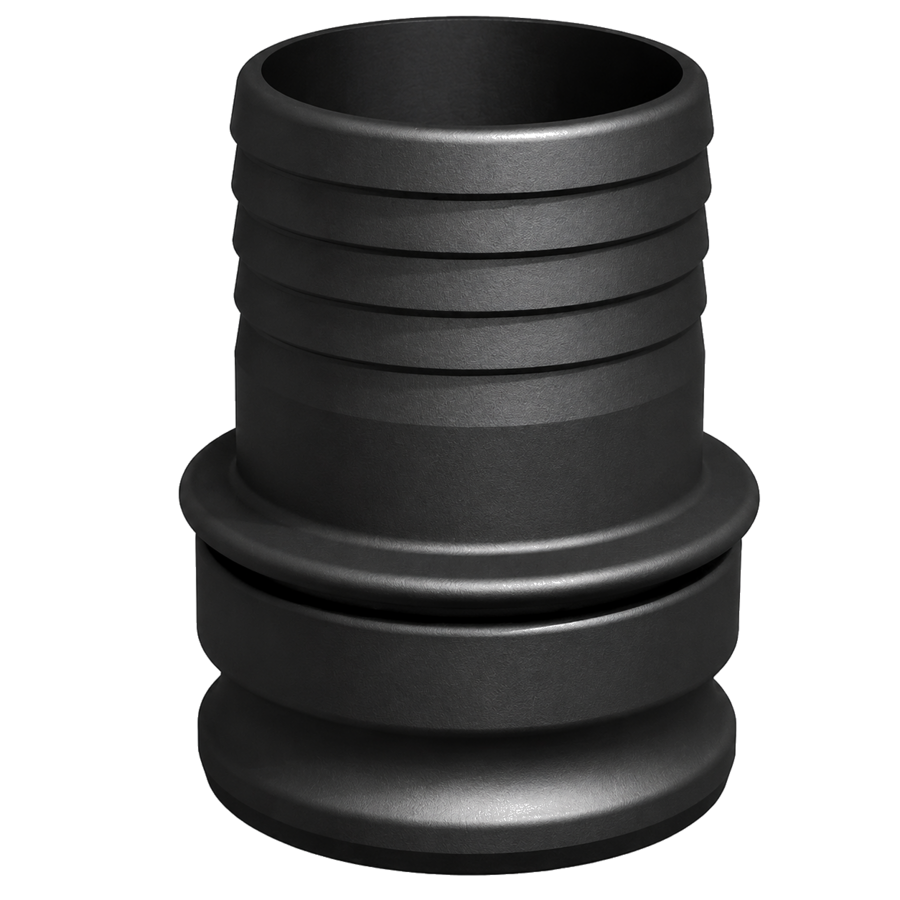

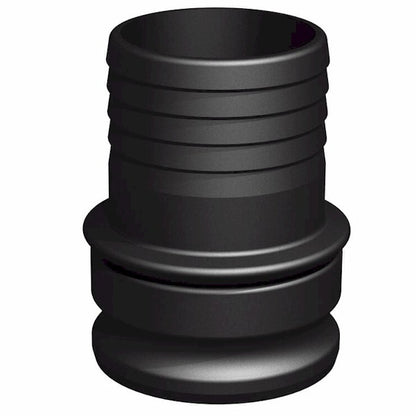

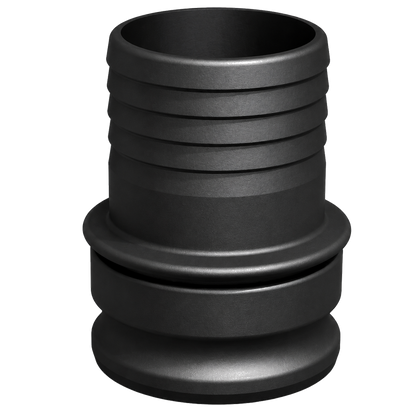

This CPP® Type E (Part E) adaptor connects a hose with a nominal 100mm internal diameter to a matching 4″ female Camlock coupler. It provides a quick connection for liquid-transfer hoses, with a barbed hose tail for use with a suitable hose clamp.
Manufactured from glass-filled polypropylene, the adaptor has a male Camlock profile that fits inside a matching female coupler. The cam arms and sealing gasket are carried by the mating female coupler.
Camlock compatibility: Fits matching 4″ female Camlock heads manufactured to EN 14420-7 or US specification A-A-59326.
Choosing the correct size: The 4″ (100mm) measurement refers to the nominal hose internal diameter. The Camlock head is 4″; select a matching female Camlock connection.
Pressure ratings — water service
Temperature
Pressure rating
−10°C
Not specified
20°C
3.5 bar (approximately 51 psi)
65°C
Not specified
These ratings apply to CPP® Camlocks in the 4″ size category and are based on water service. They are a guide only; verify suitability by testing under the intended conditions of use and meet applicable health and safety requirements. The complete assembly is limited by its lowest-rated component. No rating is specified for 4″ Camlocks at −10°C or 65°C.
Installation and use
Secure the hose tail with a clamp suitable for the hose and application. Check compatibility of the body, gasket and connected components with the liquid and operating temperature. Support attached hoses and pipework to avoid strain on the fitting, and release system pressure before disconnecting.
