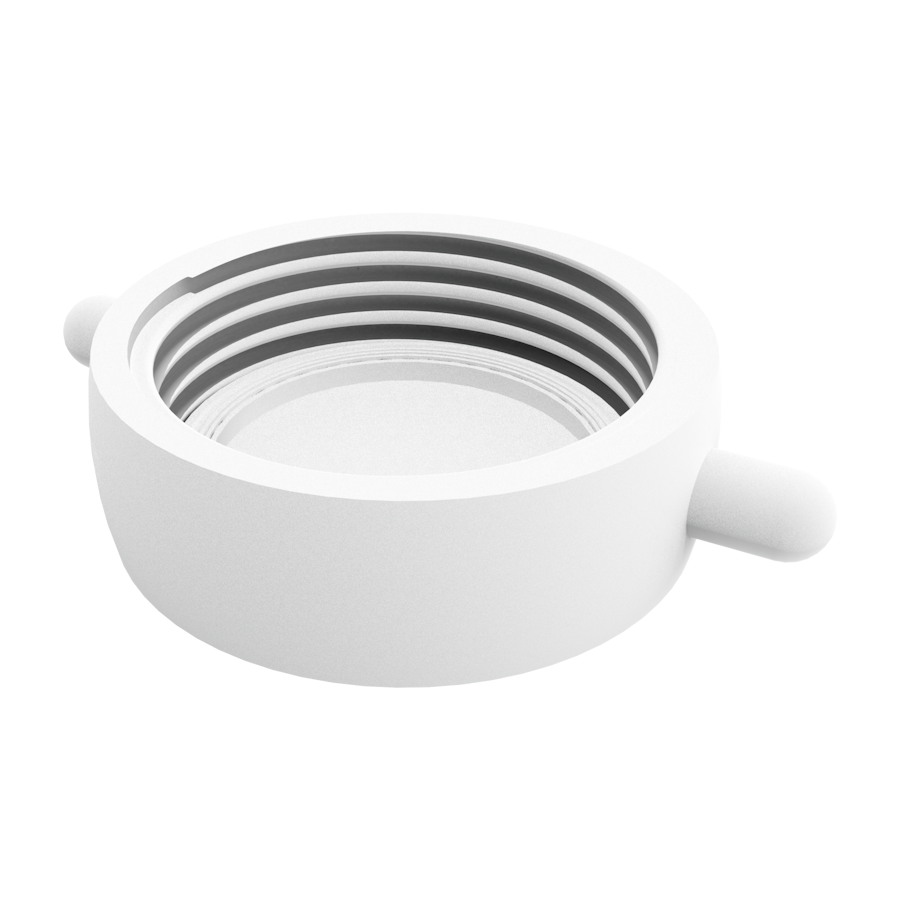

4″ URT (Urban Round Thread) Lugged Female Dust Cap – Natural Polypropylene – CPP®

CPP® 4″ URT lugged female dust cap for closing and protecting compatible 4″ URT lugged male connections, moulded in straight natural polypropylene.

URT means Urban Round Thread. It is a coarse round-thread connection used in the UK and based on traditional fire-hose suction coupling patterns. Similar round-thread systems have been used by different manufacturers, so nominal size alone does not always guarantee interchangeability.

Compatibility: Check the mating thread form and dimensions before ordering. This is particularly important with 4″ round-thread fittings, where compatibility can vary between manufacturers.

Specification

• Lugged connection: 4″ URT female
• Thread type: Urban Round Thread (URT)
• Component: Dust Cap
• Body material: Straight natural polypropylene
• Sealing gasket: PP elastomer
• Part number: LCU40P025

Pressure rating — water service

This rating applies to the CPP® straight natural polypropylene Lugged coupling range and is based on water service. The complete assembly is limited by its lowest-rated component. Verify suitability for the intended liquid, temperature and operating conditions before use.

Before use, confirm the lugged coupling size and thread form match the mating connection.
