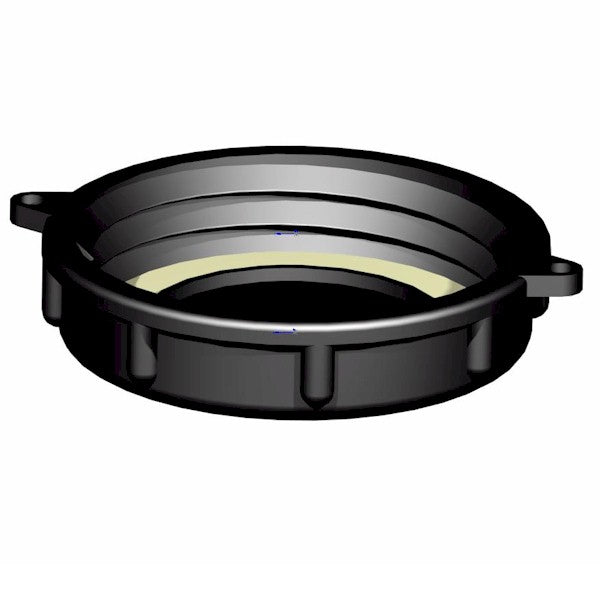

This CPP® S100X8 female dust cap screws onto a matching S100X8 male IBC valve outlet (3″ buttress, DN80) to cover the outlet and help protect it from dirt when it is not in use.
Connection and materials
-
Connection: S100X8 female buttress thread.
-
Body material: black polypropylene (PP).
-
Supplied seal: polypropylene-based olefin elastomer.
-
Product code: 3BC1008U024.
Thread identification and compatibility
S100X8 identifies a buttress thread with a nominal 100 mm male thread diameter and an 8 mm pitch. Check the thread on your IBC valve before ordering; this connection is different from S60X6, BSP and NPS threads.
The supplied gasket seals against the mating face of the IBC outlet. Correct fit depends on both the thread and the sealing face.
IBC manufacturer compatibility
Suitable for SCHÜTZ, WERIT, Greif, MAUSER (Mamor), Fustiplast and Sotralentz IBCs when fitted with a matching S100X8 male buttress outlet on a 3″ (DN80) valve and a compatible sealing face.
These manufacturers use different valve and outlet options. Confirm the actual S100X8 thread and sealing face before ordering; the tank brand or DN80 marking alone does not confirm fit. On reconditioned IBCs, check the valve currently installed.
Installation and use
Check that the outlet thread and sealing face are clean and undamaged, and that the gasket is correctly seated. Align the cap carefully to avoid cross-threading. Use with the IBC valve closed and release pressure before removing the cap.
Material and chemical suitability
Check the suitability of the fitting and seal for your liquid and operating conditions. Refer to the CPP® chemical resistance guide and Material Application Statement.
Unsure about your thread or connection? Please contact us and we’ll help you select the correct adaptor. A clear photograph of the outlet, together with any measurements, will help us identify what you need.
