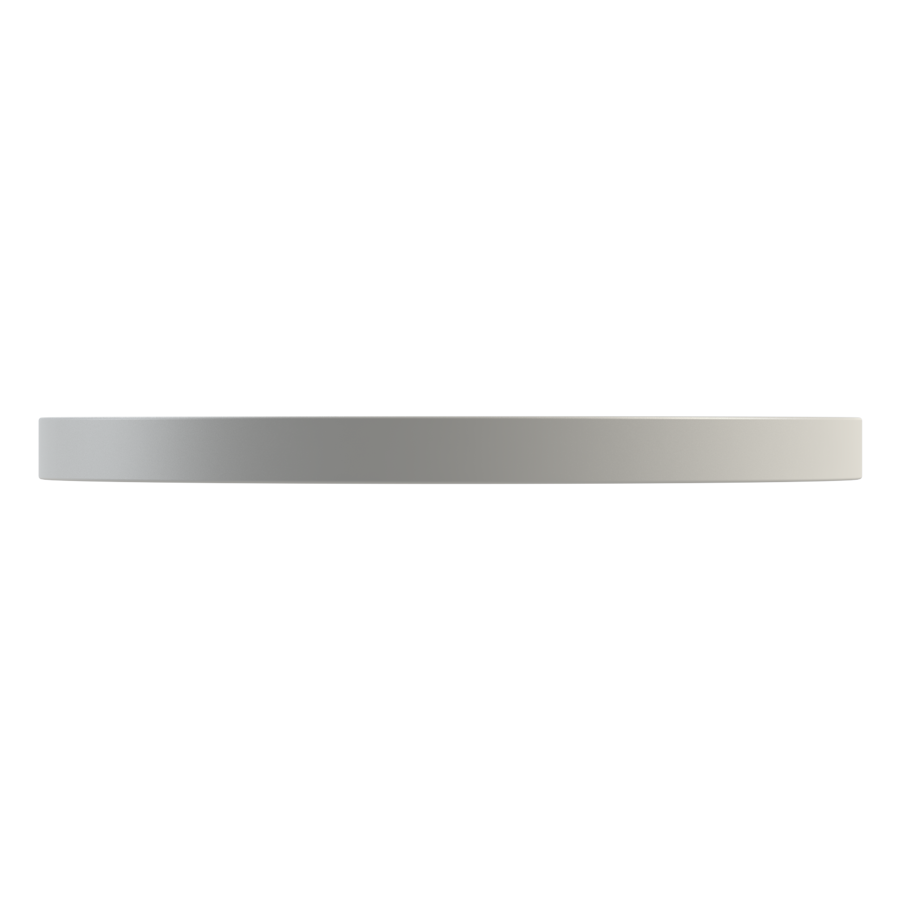

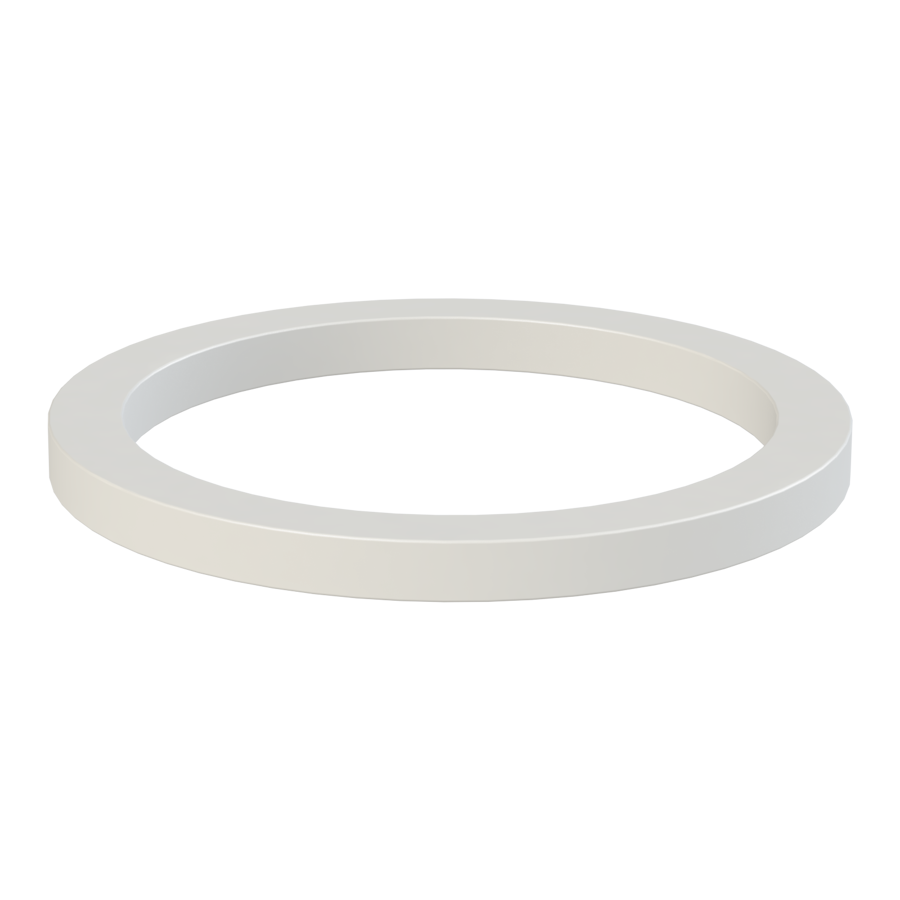

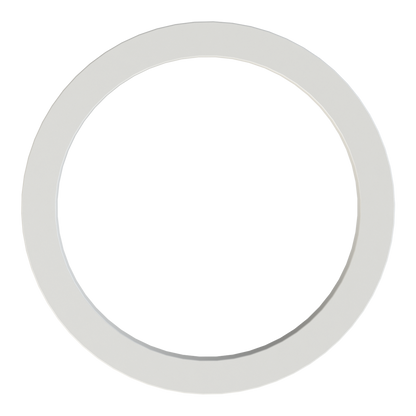

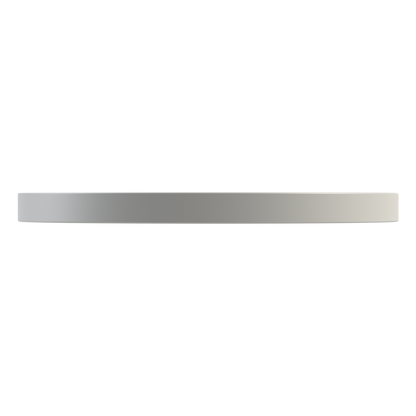

S60X6 / 2″ BSP / NPS Flat Gasket - 53.5 × 43.5 × 4mm - PP Olefin Elastomer - CPP®

This CPP® flat gasket is a replacement seal for compatible S60X6 and selected 2″ BSP/NPS female fitting housings. Match the gasket dimensions and seating arrangement to the adaptor before ordering.

Material and dimensions

• Material: Polypropylene-based olefin elastomer.
• Colour: Natural white.
• Profile: Flat.
• Outside diameter: 53.5mm.
• Inside diameter: 43.5mm.
• Thickness: 4mm.
• Product code: FS20TPENA.

Compatibility and replacement

S60X6, BSP and NPS are different thread forms. This gasket’s use in selected fittings does not make those threads interchangeable. Compare the existing seal, groove and sealing face before fitting.

Close the IBC valve and release pressure before removing the adaptor. Clean the seal seat, fit the replacement without twisting or trapping it, and check the assembled connection for leaks. Operating limits depend on the complete fitting and application.

Material and application guidance

Check the CPP® chemical resistance guide and Material Application Statement for suitability with your liquid and operating conditions.

Need help choosing the right fitting?

If you’re unsure about your IBC thread or connection, please contact us and we’ll help you select the correct replacement seal. A clear photo of the outlet, together with any measurements, will help us identify what you need.
