CPP® / FITTING FINDER

Find your IBC fitting.

DRAFT

1 / Tank connection

I know my connection

Choose the outlet on your tank. Use the identifier beneath each picture to check it if needed.

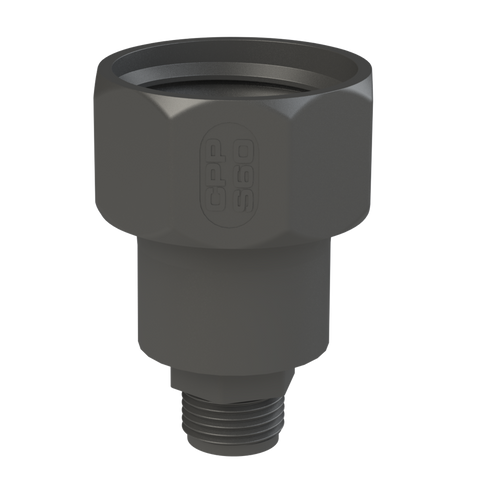

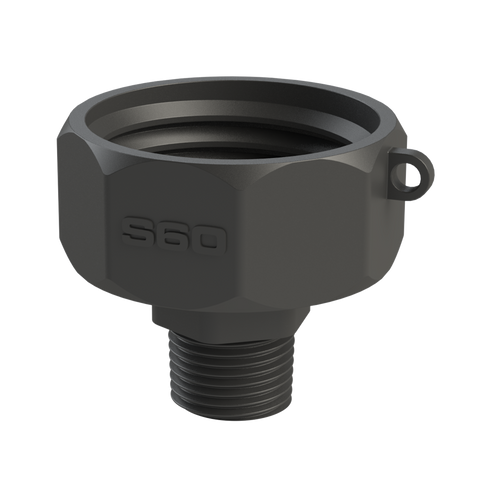

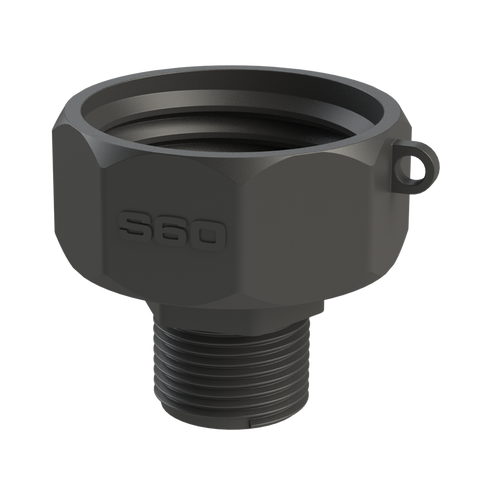

Thread identifier — S60X6

Quick identification check

S60X6

IBC valve with an exposed S60X6 coarse buttress-thread outlet

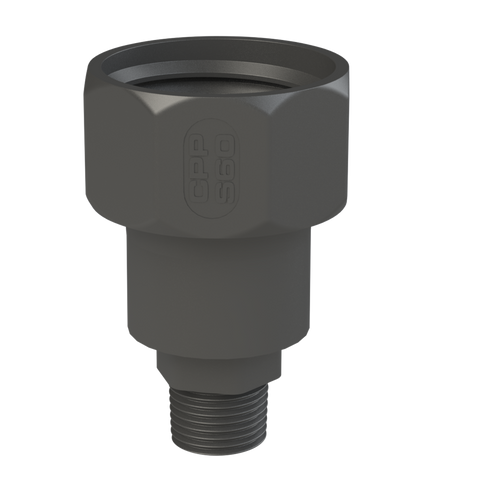

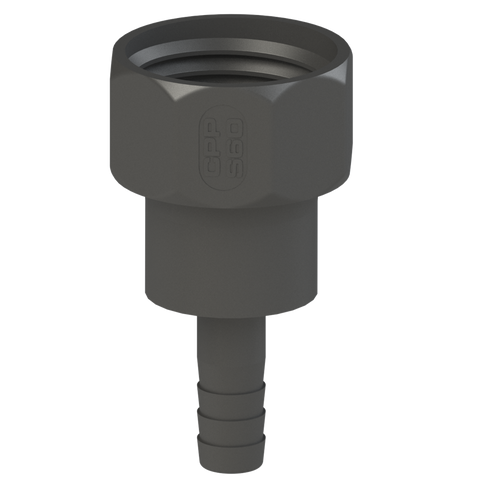

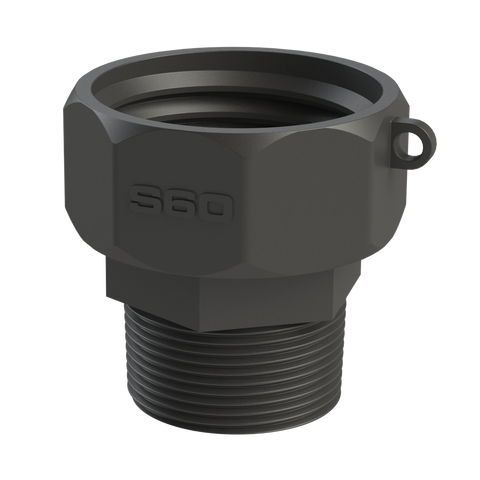

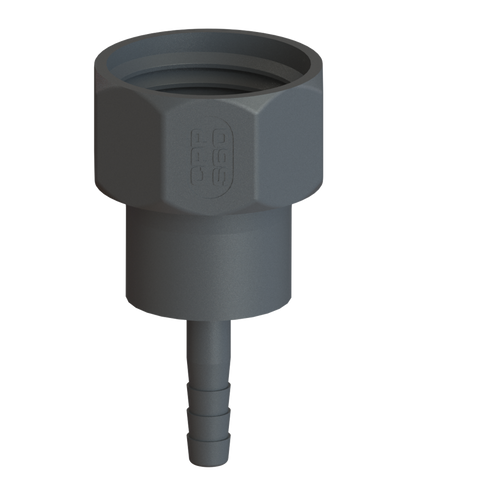

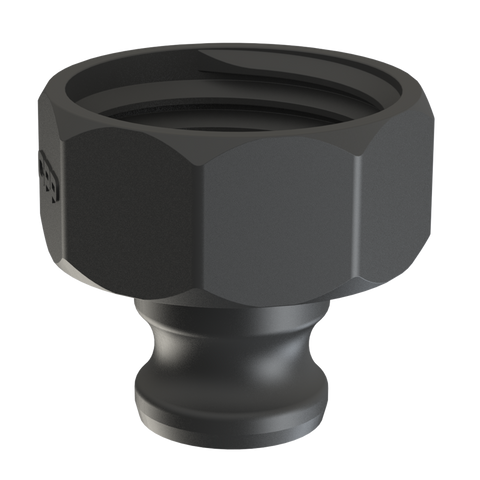

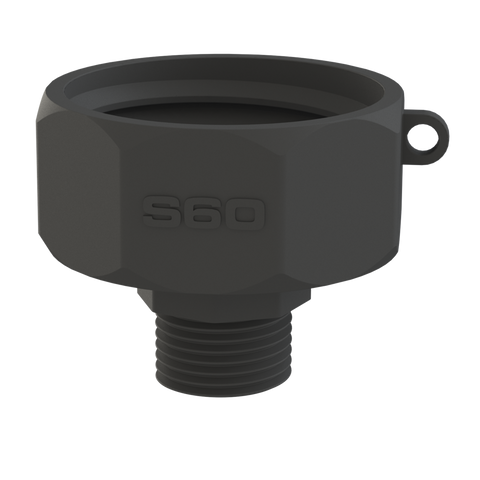

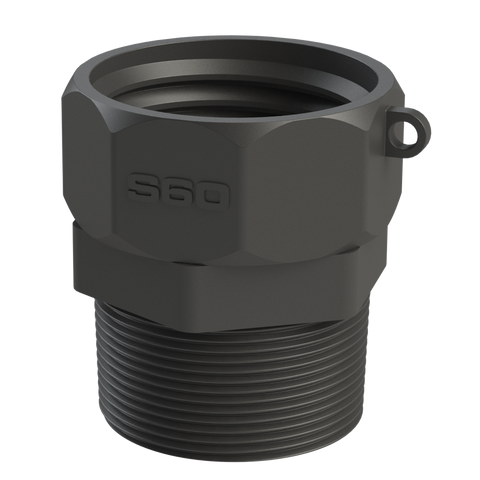

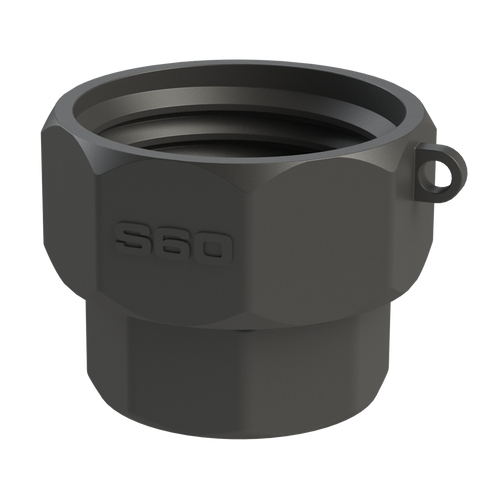

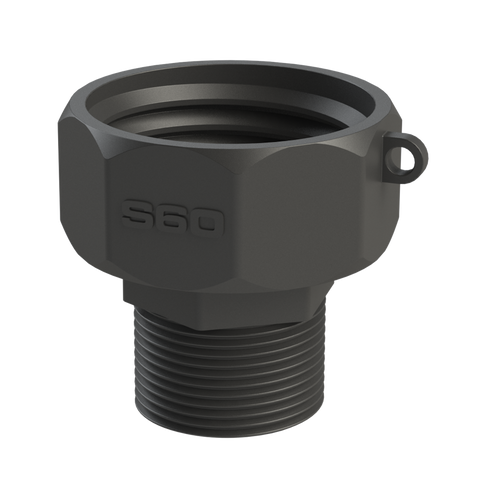

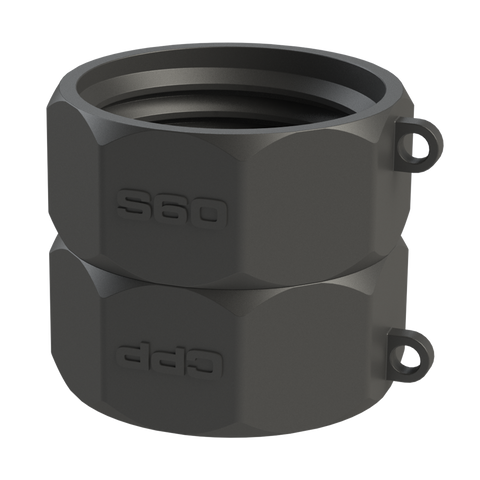

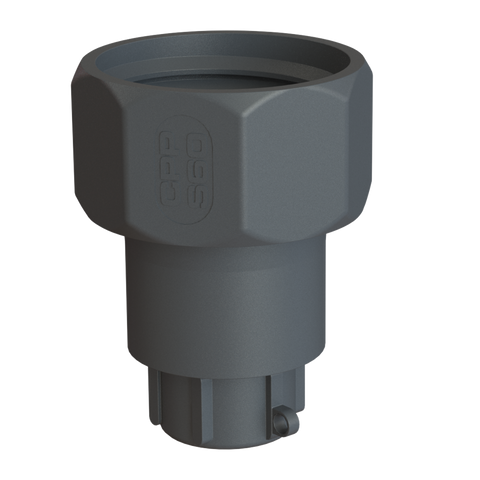

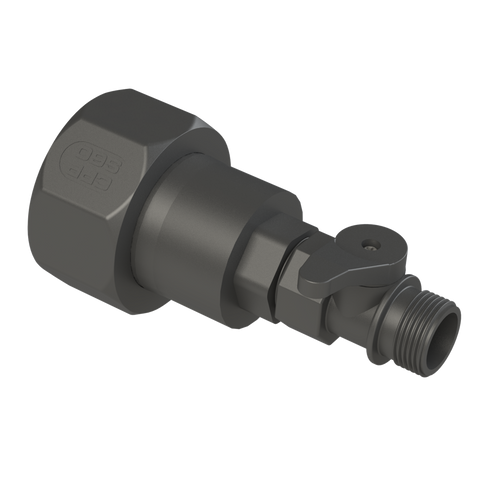

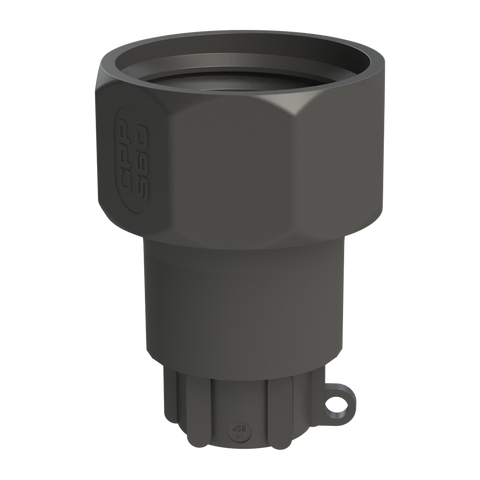

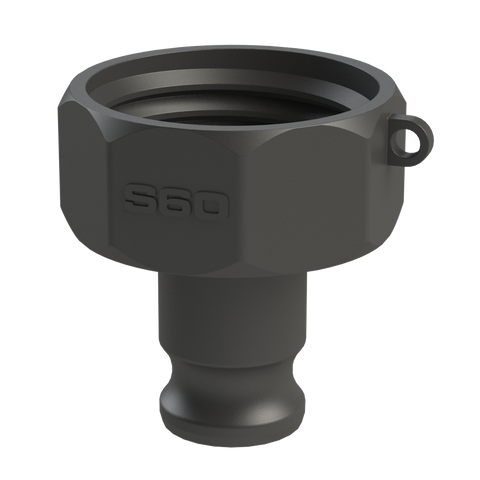

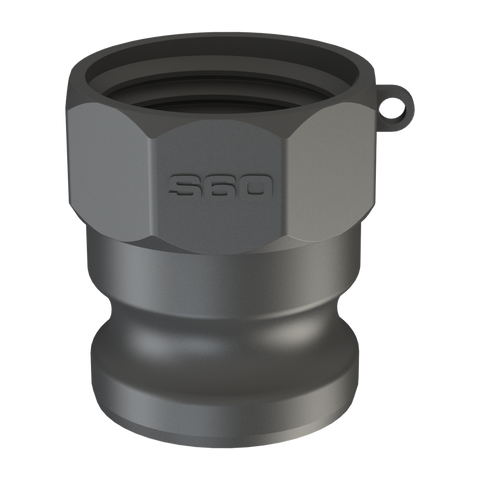

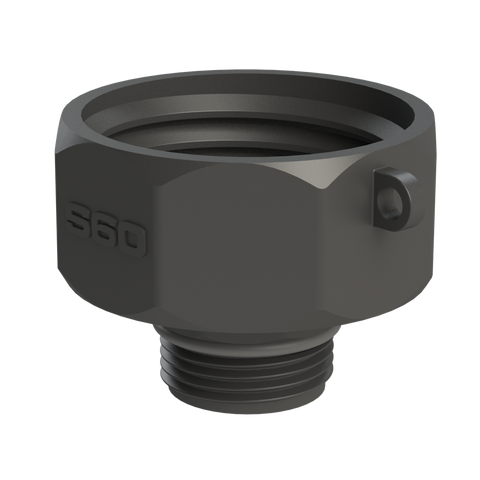

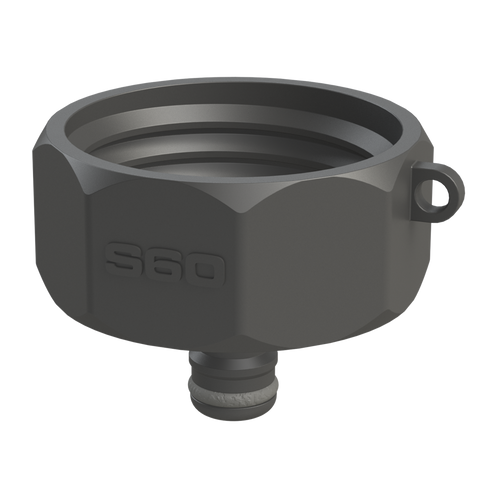

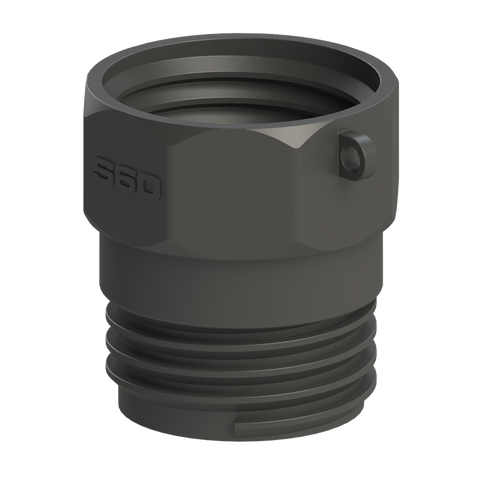

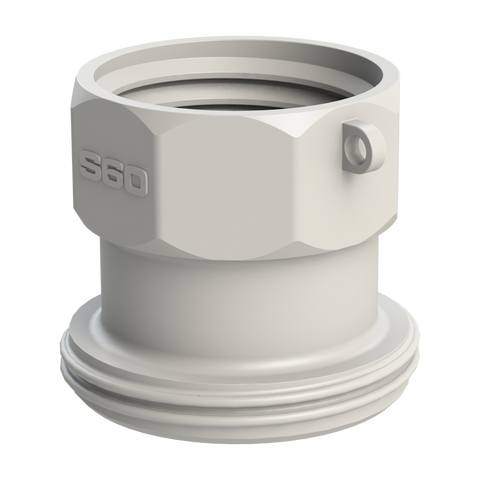

Check for a coarse external buttress thread with a nominal outside diameter of 60 mm (2.362″) and a pitch of 6 mm (0.236″). Measure over the thread crests, not the hole. The matching CPP adaptor has an S60X6 female tank connection.

Inspect only when the container is safe. Confirm the complete profile and sealing face; a picture or nominal dimension alone is not a guarantee of fit. Inch measurements in brackets are rounded conversions.

Full identification guideAsk CPP® Technical Support

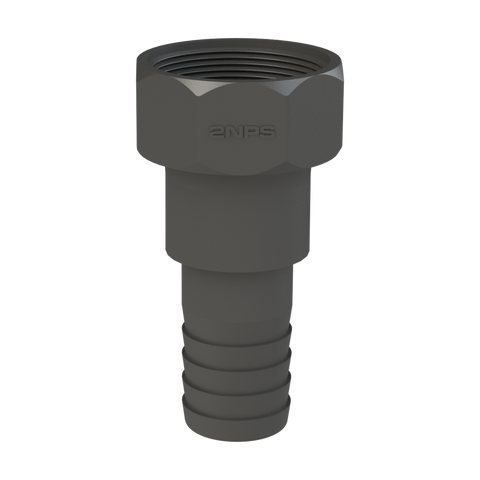

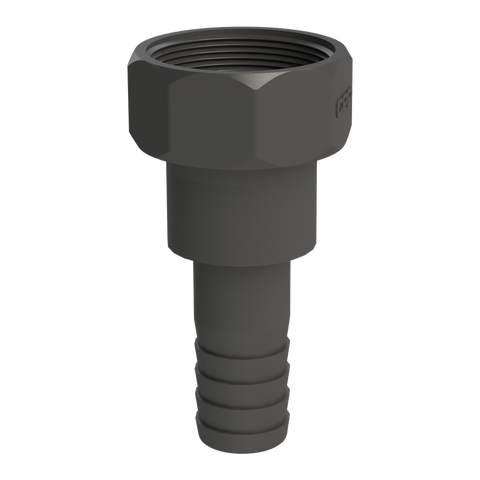

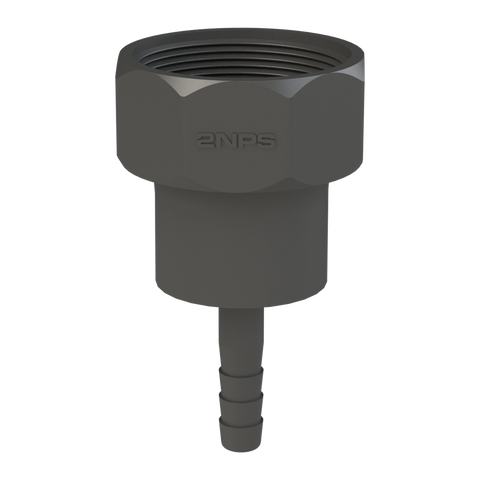

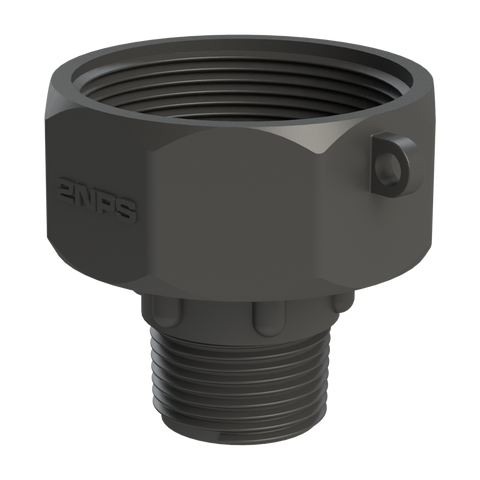

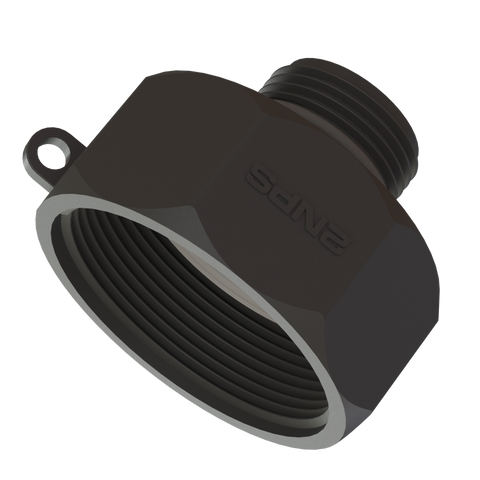

Thread identifier — 2″ NPS

Quick identification check

2″ NPS

IBC valve with an exposed 2 inch NPS male outlet

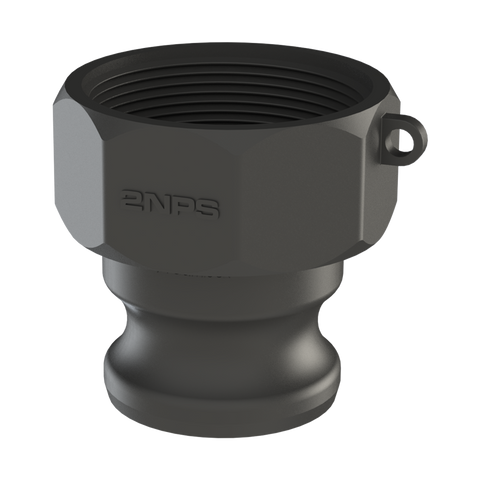

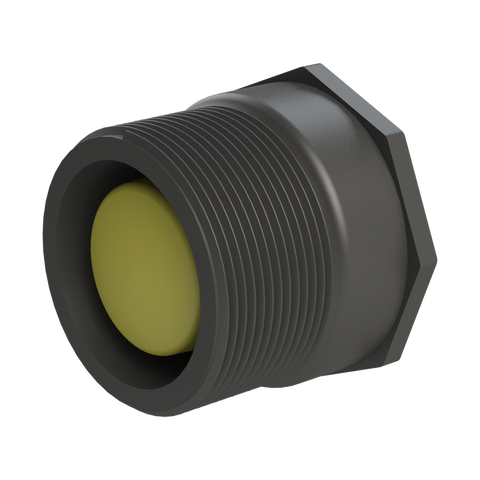

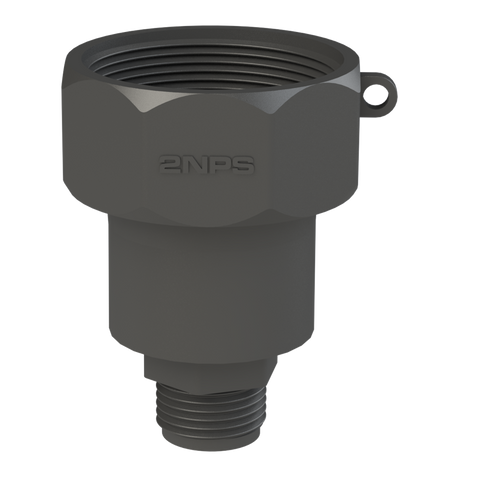

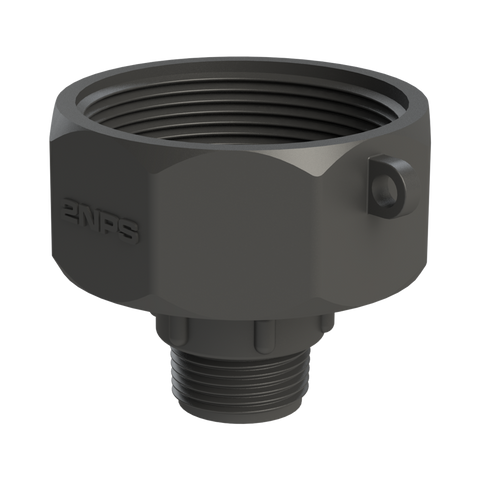

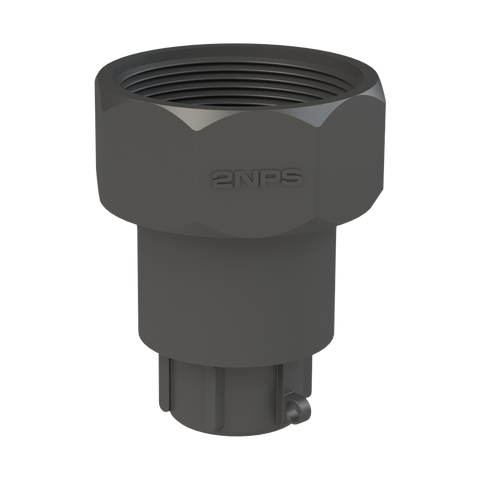

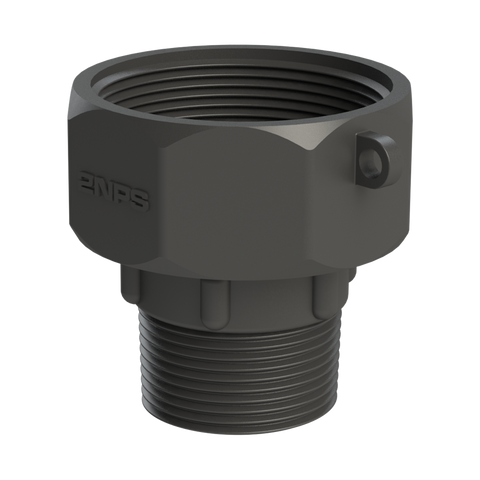

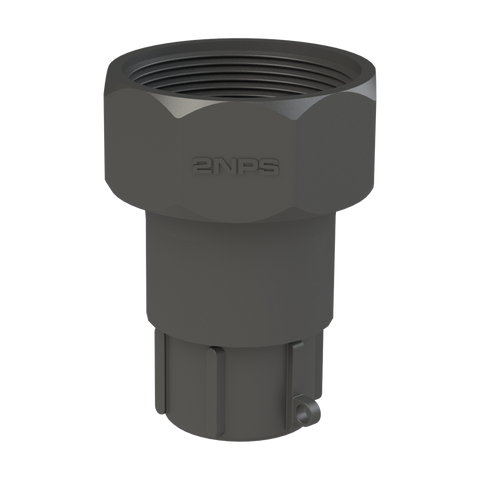

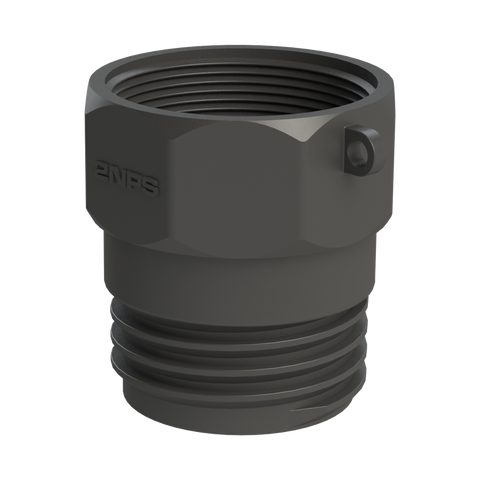

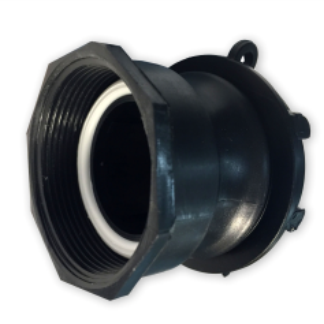

Check that the valve has a dedicated 2″ NPS male straight-thread outlet and a suitable gasket sealing face. NPS, NPT and BSP must not be identified from a similar appearance alone. Check the valve specification or ask CPP when uncertain.

Inspect only when the container is safe. Confirm the complete profile and sealing face; a picture or nominal dimension alone is not a guarantee of fit. Inch measurements in brackets are rounded conversions.

Full identification guideAsk CPP® Technical Support

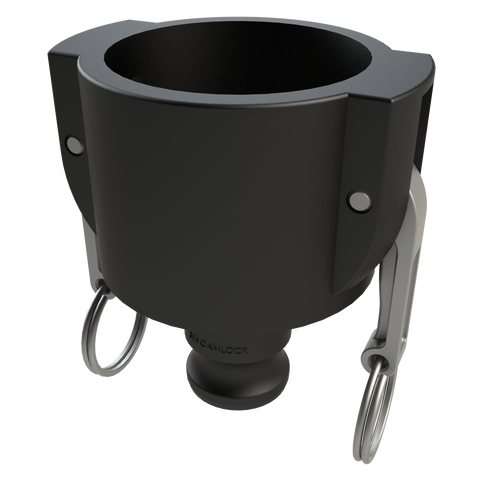

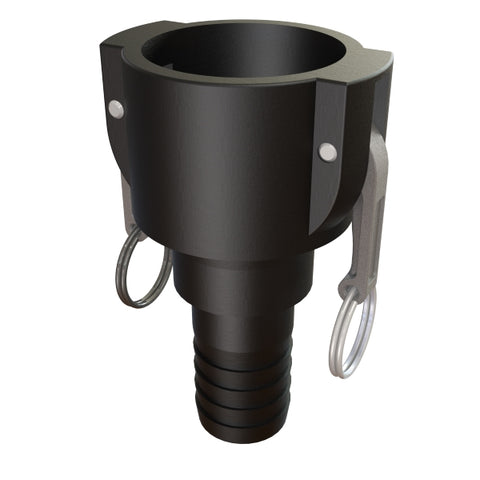

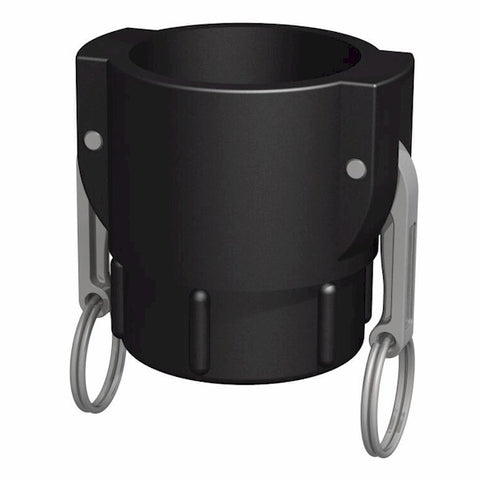

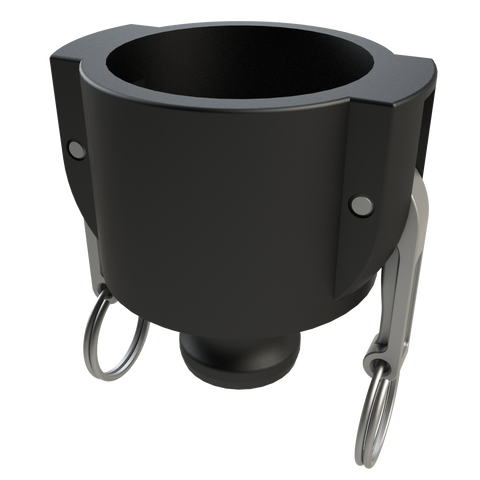

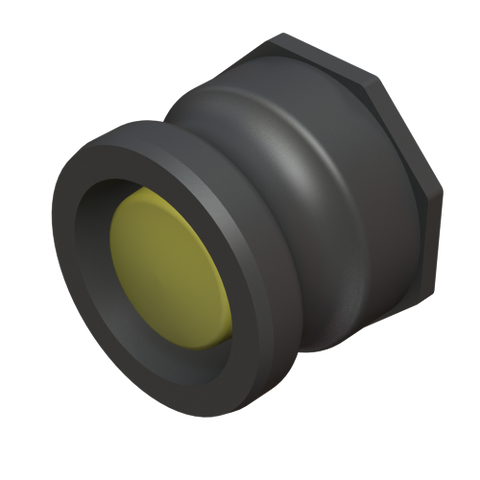

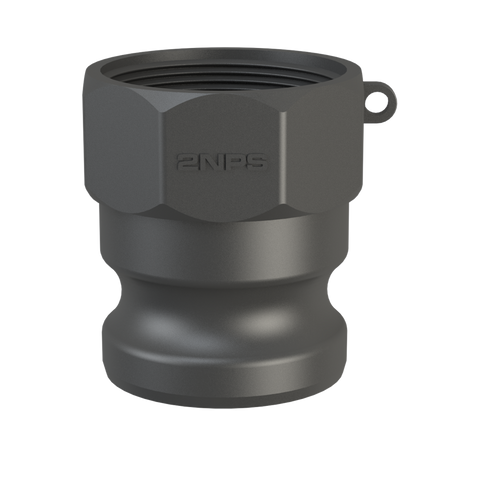

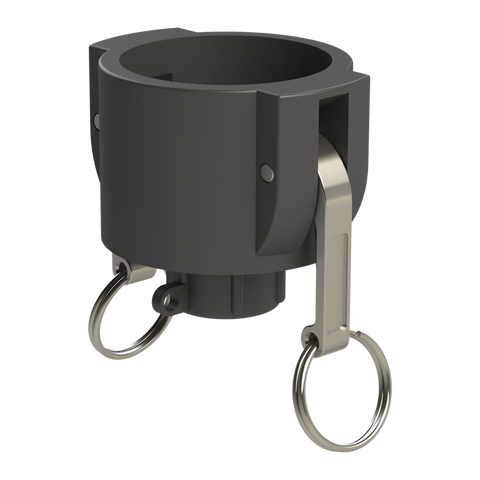

Connection identifier — 2″ Camlock

Quick identification check

2″ Camlock

IBC valve with an exposed 2 inch male Camlock outlet and locking groove

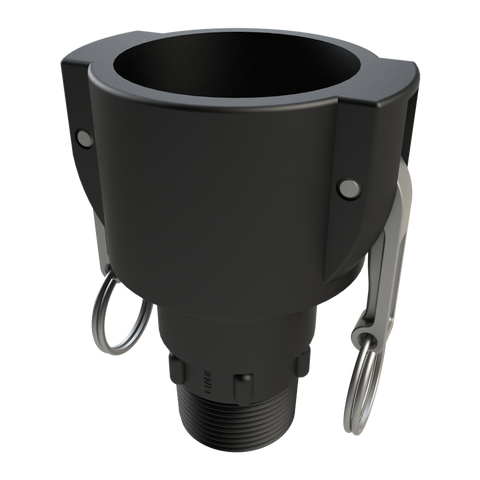

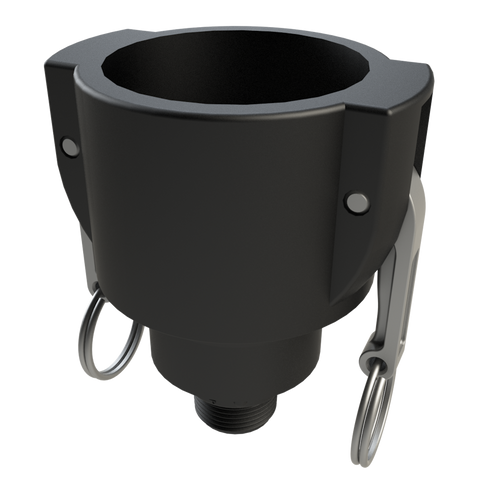

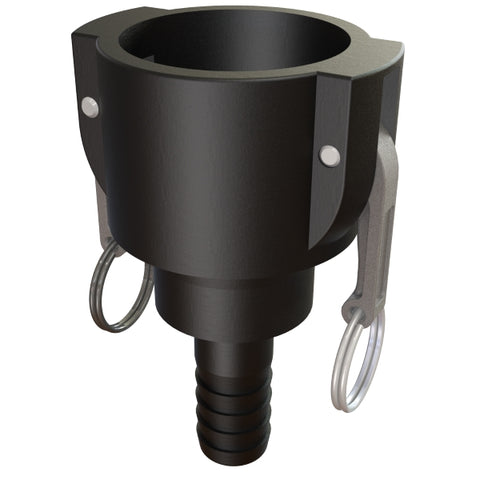

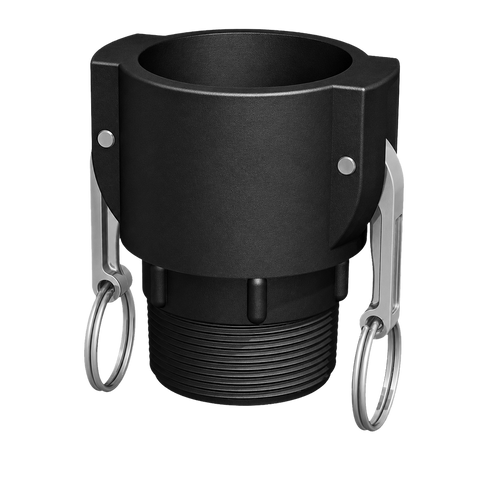

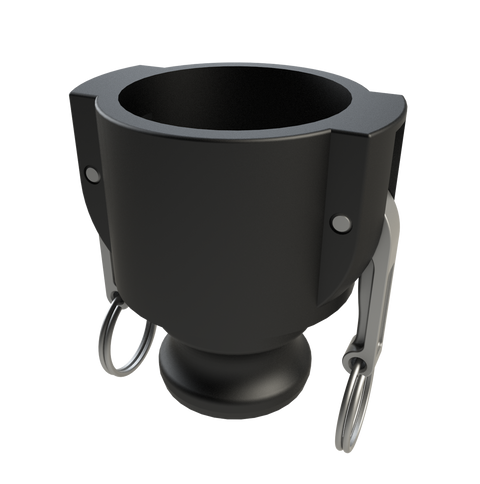

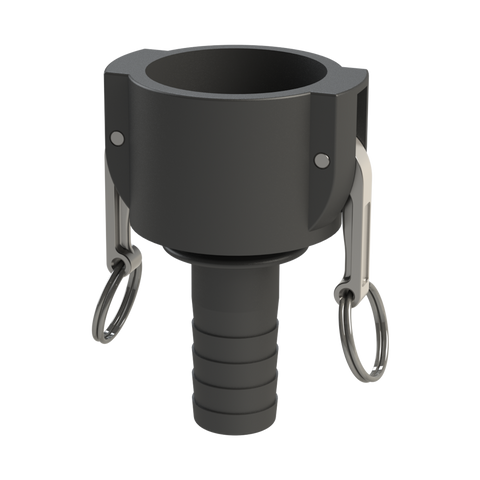

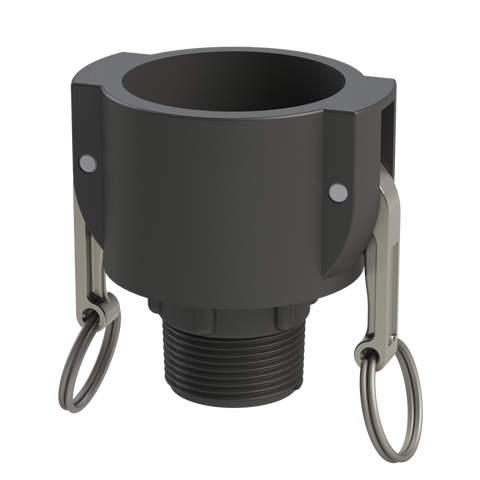

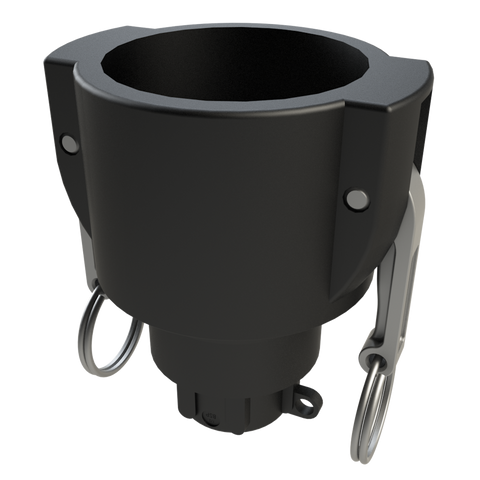

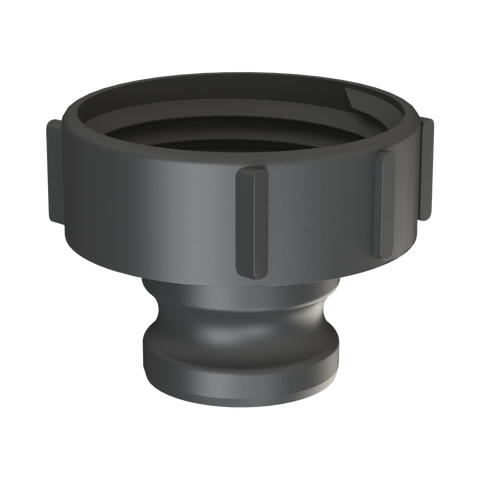

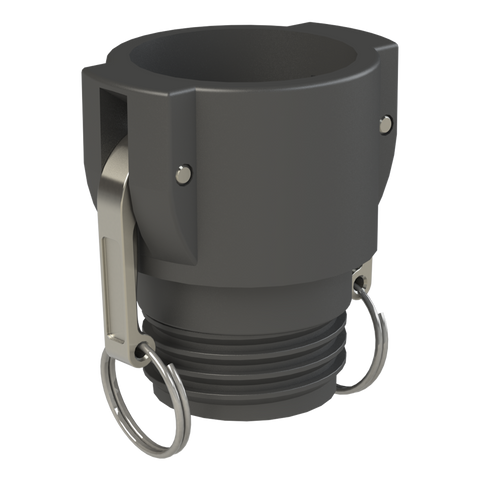

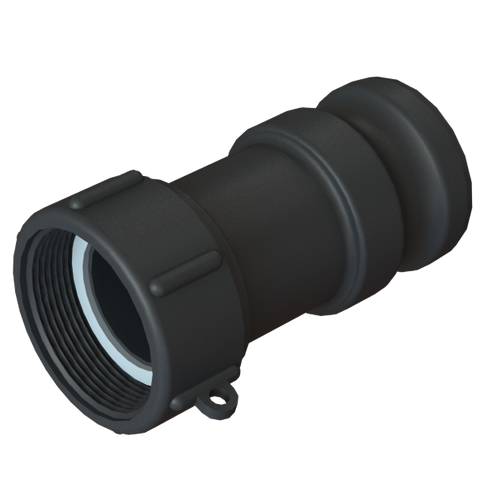

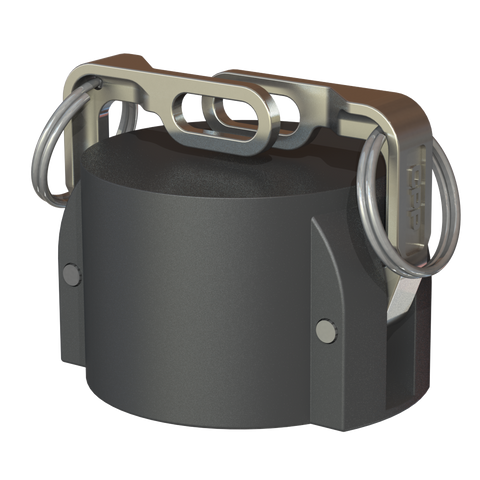

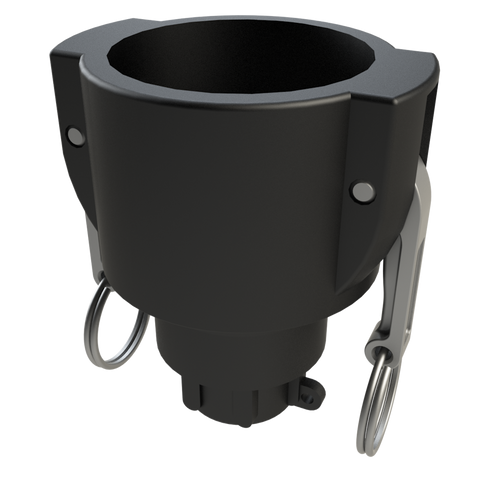

Look for a male Camlock profile with a locking groove. Confirm the 2″ coupling size and sealing face from the valve specification or CPP size chart. A short thread on the nose may be for a protective cap; it does not by itself identify a pipe connection.

Inspect only when the container is safe. Confirm the complete profile and sealing face; a picture or nominal dimension alone is not a guarantee of fit. Inch measurements in brackets are rounded conversions.

Full identification guideAsk CPP® Technical Support

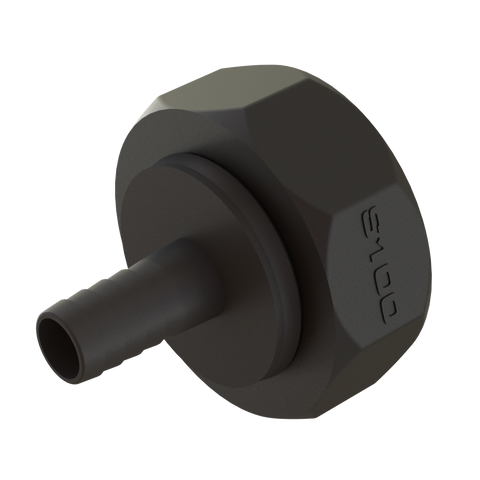

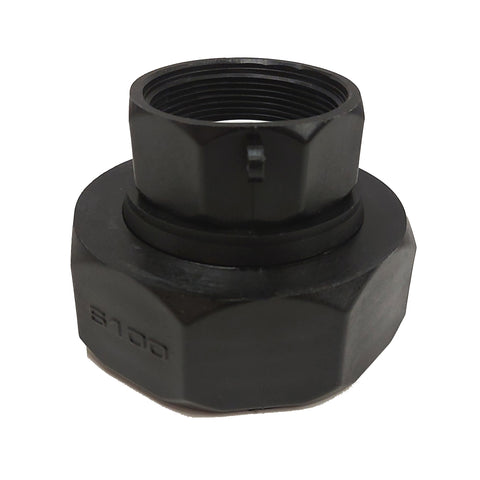

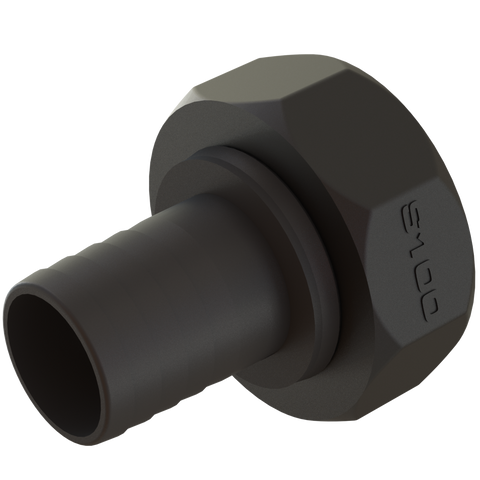

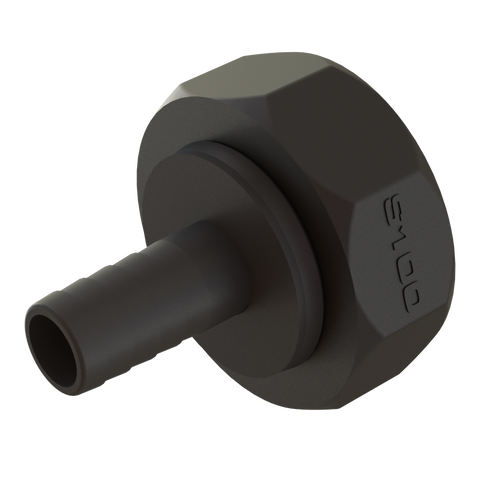

Thread identifier — S100X8

Quick identification check

S100X8

IBC valve with an exposed S100X8 large coarse buttress-thread outlet

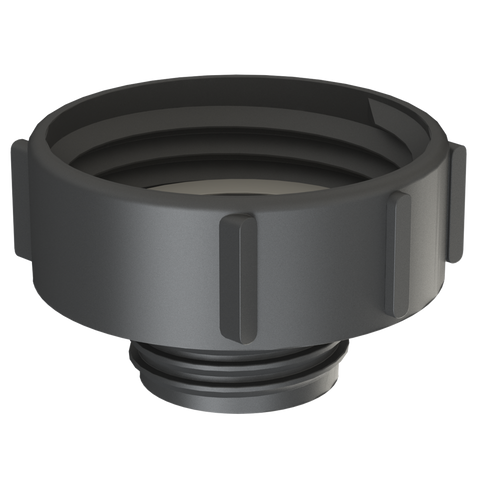

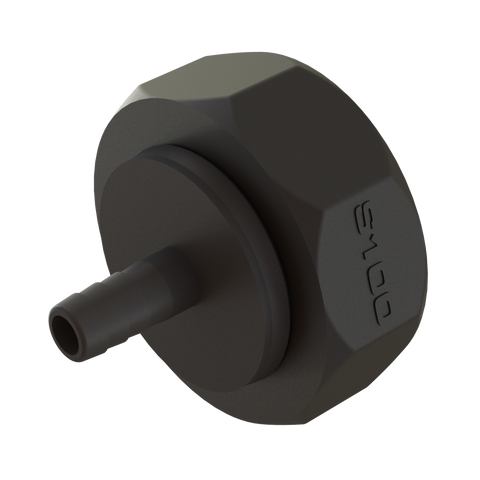

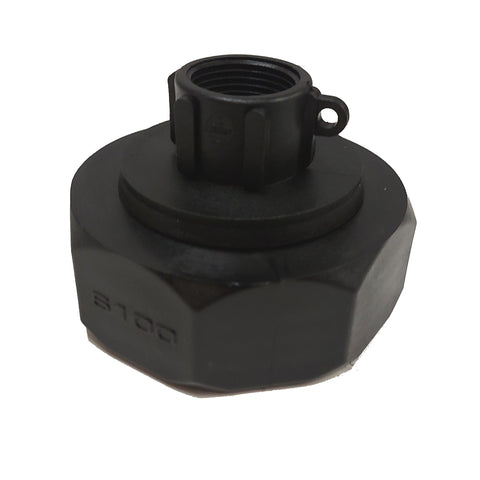

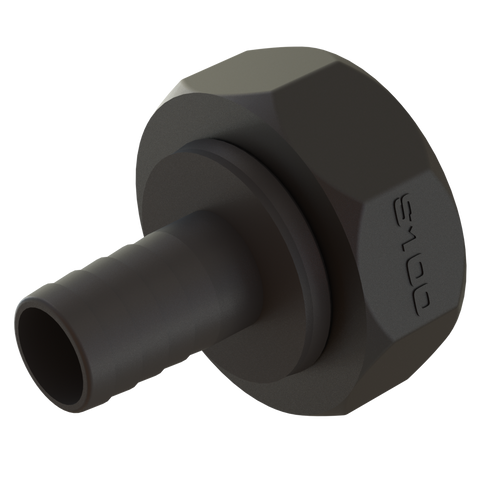

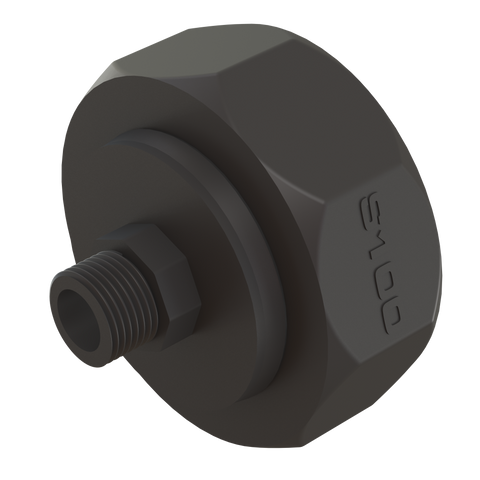

Check for a large coarse external buttress thread with a nominal outside diameter of 100 mm (3.937″) and a pitch of 8 mm (0.315″). A 3″ or DN80 valve marking alone does not confirm S100X8. The matching CPP adaptor has an S100X8 female tank connection.

Inspect only when the container is safe. Confirm the complete profile and sealing face; a picture or nominal dimension alone is not a guarantee of fit. Inch measurements in brackets are rounded conversions.

Full identification guideAsk CPP® Technical Support
Other type / not sure?Ask CPP® Technical Support

Check the outlet, sealing face, materials and working limits before ordering. Do not force a fitting.
